Click Specification

Unit:mm

The Parts and Units of Jigs and Fixtures - Aligning Pin

JB /T 8015 - 1999

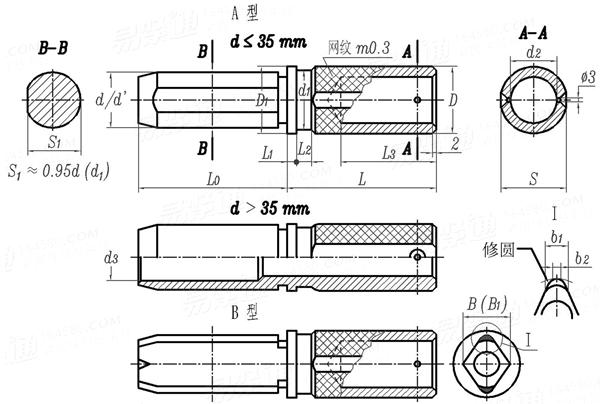

Display drawing:

机械行业JB /T8015 - 1999 JB8015 8015JB The Parts and Units of Jigs and Fixtures - Aligning Pin
Nominal Diameter
d
3 4 6 8 10 12 15 18 22
d max
min
d’
D before knurled
D1
d1
d2
d3
L
L1
L2
L3
s
B
B1
b
b1
b2
2.994 3.99 5.99 7.987 9.987 11.984 14.984 17.984 21.98
2.984 3.978 5.978 7.972 9.972 11.966 14.966 17.966 21.959
2~3 ＞3~4 ＞4~6 ＞6~8 ＞8~10 ＞10~12 ＞12~15 ＞15~18 ＞18~22
6 8 10 12 14 16 19 22 30
6 8 10 12 14 16 19 22 30
5 6 7 8 10 12 15 18 26
- - - - - - - 14 20
- - - - - - - - -
30 30 30 30 40 40 50 50 60
2 2 2 2 3 3 4 4 4
3 3 3 3 4 4 6 6 6
- - - - - - - 35 45
5 7 9 11 13 15 18 21 29
2.7 3.5 5.5 7 9 10 13 16 19
d'-0.3 d'-0.5 d'-0.5 d'-1 d'-1 d'-2 d'-2 d'-2 d'-3
2 2 2 2 2 2 2 2 2
1.5 2 2 3 3 4 4 4 5
1 1 1 2 2 3 3 3 3
Nominal Diameter
d
26 30 35 42 48 55 62 70 78
d max
min
d’
D before knurled
D1
d1
d2
d3
L
L1
L2
L3
s
B
B1
b
b1
b2
25.98 29.98 34.975 41.975 47.975 54.97 61.97 69.97 77.97
25.959 29.959 34.95 41.95 47.95 54.94 61.94 69.94 77.94
＞22~26 ＞26~30 ＞30~35 ＞35~42 ＞42~48 ＞48~55 ＞55~62 ＞62~70 ＞70~78
30 36 40 40 40 40 40 40 40
30 36 40 47 53 60 67 75 d+5,d'+5
26 32 36 36 36 36 36 36 36
20 25 28 28 28 28 28 28 28
- - - 25 30 35 40 45 50
60 80 80 90 90 90 90 90 90
4 5 5 6 6 6 6 6 6
6 8 8 8 8 8 8 8 8
45 60 60 - - - - - -
29 35 39 39 39 39 39 39 39
23 26 30 - - - - - -
d'-3 d'-4 d'-5 - - - - - -
2 3 3 3 3 4 4 4 4
5 5 5 - - - - - -
3 3 3 - - - - - -

Alternative history

GB /T 2205 - 1991 JB /T 8015 - 1999
