DIN 85 - 1988Slotted Pan Head Screws - Product Grade A

| 简体 | 繁體 |

(Non-preferred) dimensions in parentheses.

DIN 85 - 1988

Unit: mm

DIN 85 - 1988 Slotted Pan Head Screws - Product Grade A

Unit: mm

Find suppliers

Download

DIN 85_M3X4

Download this CAD model

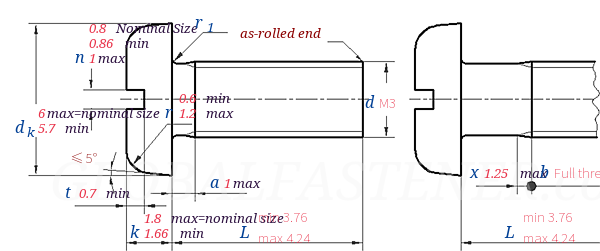

DIN 85 - 1988 Slotted Pan Head Screws - Product Grade A

Thread Size
d ^①

M3

P ^②	Pitch
a	max
d_k	max=nominal size
d_k	min
k	max=nominal size
k	min
n	Nominal Size
	min
	max
t	min
r	min
r	max
x	max

0.5
1
6
5.7
1.8
1.66
0.8
0.86
1
0.7
0.6
1.2
1.25

thousand-piece steel weight≈kg

0.503

Thread Lengthb

Full thread
