GB 109 - 1986Flat Head Rivets

| 简体 | 繁體 |

(Non-preferred) dimensions in parentheses.

4
5
6
7
8

GB 109 - 1986

Unit: mm

GB 109 - 1986 Flat Head Rivets

Unit: mm

Find suppliers

Download

GBT 109_Φ2X4

Download this CAD model

GBT 109@assembled厚1.2_Φ2X4

Download this CAD model

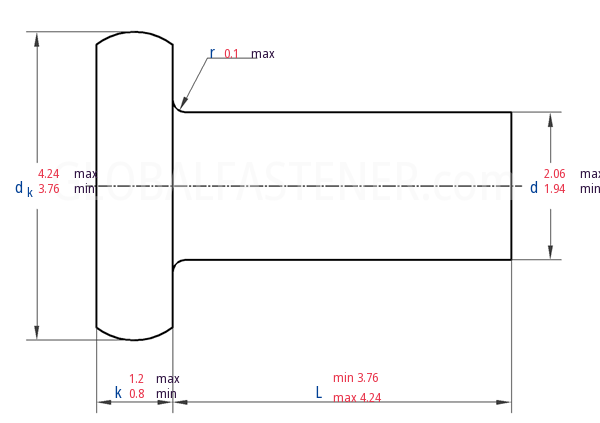

GB 109 - 1986 Flat Head Rivets

Nominal Diameter
d

Φ2

d	max
d	min
d_k	max
d_k	min
k	max
k	min
r	max

2.06

1.94

4.24

3.76

1.2

0.8

0.1

thousand-piece steel weight≈kg

0.17
