JIS B 2706 (H) - 2001

Unit: mm

JIS B 2706 H - 2001 Coned Disc Springs for Heavy Load Use

Unit: mm

Find suppliers

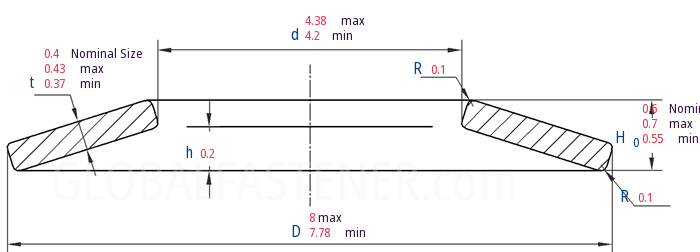

JIS B 2706 H - 2001 Coned Disc Springs for Heavy Load Use
Size 8
D max
min
d max
min
H0 Nominal Size
max
min
t Nominal Size
max
min
h
R
8
7.78
4.38
4.2
0.6
0.7
0.55
0.4
0.43
0.37
0.2
0.1
