JIS B 1200 - 2018

Unit: mm

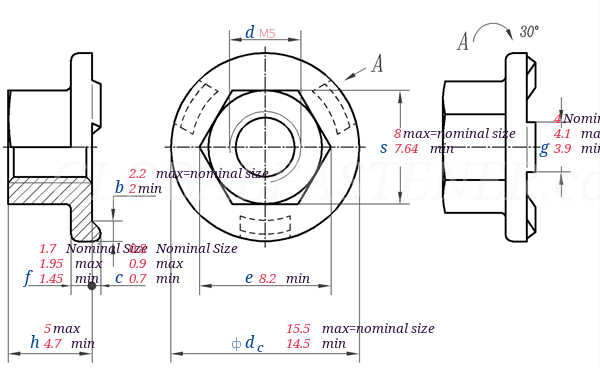

JIS B 1200 - 2018 Hexagon Weld Nuts With Flange

Unit: mm

Find suppliers

Download

JIS B1200@simple-P0.8_M5

Download this CAD model

JIS B1200-P0.8_M5

Download this CAD model

JIS B 1200 - 2018 Hexagon Weld Nuts With Flange

Thread Size
d

M5

P		Pitch	Coarse thread
			Fine thread, 1
			Fine thread, 2
b		max=nominal size
		min
c		Nominal Size
		max
		min
d_c		max=nominal size
		min
e		min
f		Nominal Size
		max
		min
g		Nominal Size
		max
		min
h		max
		min
s		max=nominal size
		min
per 1000 units ≈ kg

0.8
-
-
2.2
2
0.8
0.9
0.7
15.5
14.5
8.2
1.7
1.95
1.45
4
4.1
3.9
5
4.7
8
7.64
2.9
