DIN EN ISO 8673 - 2013Hexagon Regular Nuts with (Style 1) with Metric Fine Pitch Thread-Product Grade A and B

| 简体 | 繁體 |

(Non-preferred) dimensions in parentheses.

DIN EN ISO 8673 - 2013

Unit: mm

DIN EN ISO 8673 - 2013 Hexagon Regular Nuts With(Style 1) With Metric Fine Pitch Thread-Product Grade A And B

Unit: mm

Find suppliers

Download

DIN EN ISO 8673_M8x1

Download this CAD model

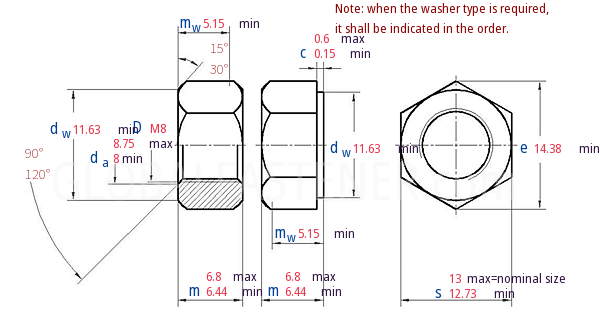

DIN EN ISO 8673 - 2013 Hexagon Regular Nuts With(Style 1) With Metric Fine Pitch Thread-Product Grade A And B

Thread Size
D

M8
x1

P	Pitch
c	max
c	min
d_a	max
d_a	min
d_w	min
e	min
m	max
m	min
m_w	min
s	max=nominal size
s	min

1
0.6
0.15
8.75
8
11.63
14.38
6.8
6.44
5.15
13
12.73
