DIN EN ISO 13337 - 2009

Unit: mm

DIN EN ISO 13337 - 2009 Spring - Type Straight Pins - Slotted, Light Duty

Unit: mm

Find suppliers

Download

ISO13337_Φ2X4

Download this CAD model

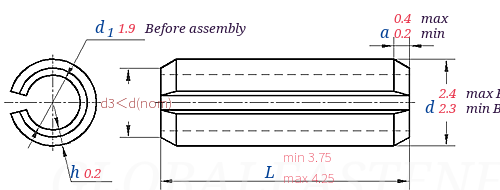

DIN EN ISO 13337 - 2009 Spring - Type Straight Pins - Slotted, Light Duty

Nominal Diameter
d

Φ2

d		Before assembly	max
			min
d₁		Before assembly
a		max
		min
h
Minimum Double Shear,kN

2.4

2.3

1.9

0.4

0.2

0.2

1.5
