DIN EN ISO 8741 - 1998

Unit: mm

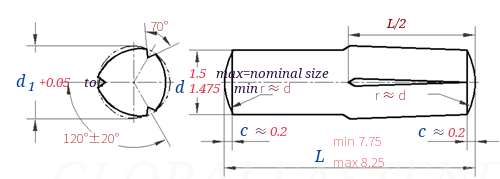

DIN EN ISO 8741 - 1998 Grooved Pins - Half-length Reverse-taper Grooved

Unit: mm

Find suppliers

Download

DIN EN ISO 8741_Φ1.5X8

Download this CAD model

DIN EN ISO 8741 - 1998 Grooved Pins - Half-length Reverse-taper Grooved

Nominal Diameter
d

Φ1.5

d	max=nominal size
d	min
c	≈
Minimum Double Shear,kN
d₁ ^③	tol.

1.5

1.475

0.2

1.6

+0.05
