DIN EN ISO 8744 - 1998

Unit: mm

DIN EN ISO 8744 - 1998 Groovd Pins - Full-Length Taper Grooved

Unit: mm

Find suppliers

Download

DIN EN ISO 8744_Φ1.5X8

Download this CAD model

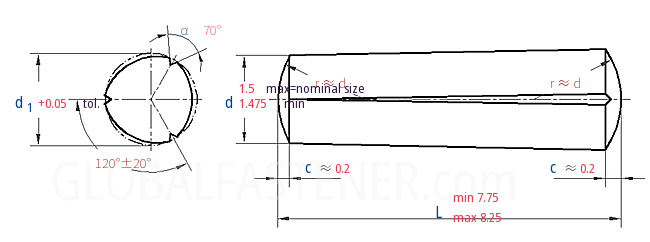

DIN EN ISO 8744 - 1998 Groovd Pins - Full-Length Taper Grooved

Nominal Diameter
d

Φ1.5

d	max=nominal size
d	min
c	≈
α ^①
Minimum Double Shear,kN	min
d₁	tol.

1.5

1.475

0.2

70°

1.6

+0.05
