DIN 466 - 2006Knurled Nuts, High Type

| 简体 | 繁體 |

DIN 466 - 2006

Unit: mm

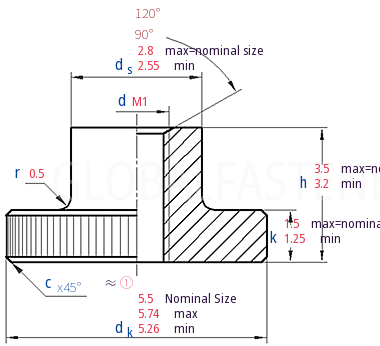

DIN 466 - 2006 Knurled Nuts, High Type

Unit: mm

Find suppliers

Download

DIN 466_M1

Download this CAD model

DIN 466 - 2006 Knurled Nuts, High Type

Thread Size
d ^③

M1

P	Pitch
c	≈
d_k	Nominal Size
	max
	min
d_s	max=nominal size
	min
h	max=nominal size
	min
k	max=nominal size
	min
r
Knurling division
per 1000 units ≈ kg

0.25
①
5.5
5.74
5.26
2.8
2.55
3.5
3.2
1.5
1.25
0.5
0.5
0.357
