GB /T 6172.2 - 2016Prevailing Torque Type Hexagon Thin Nuts（With Non-Metalic Insert）

| 简体 | 繁體 |

(Non-preferred) dimensions in parentheses.

GB /T 6172.2 - 2016

Unit: mm

GB /T 6172.2 - 2016 Prevailing Torque Type Hexagon Thin Nuts（With Non-Metalic Insert）

Unit: mm

Find suppliers

Download

GBT 6172.2_M3

Download this CAD model

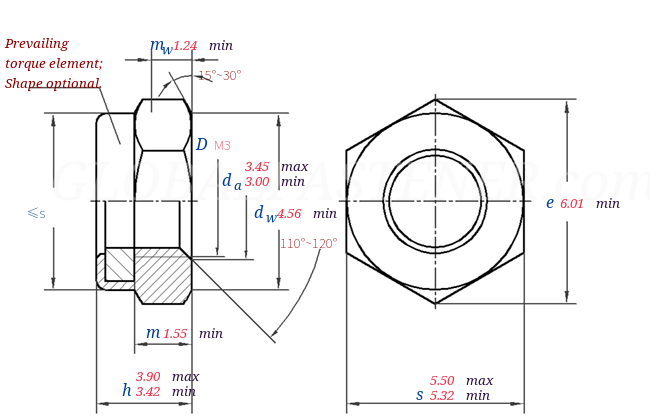

GB /T 6172.2 - 2016 Prevailing Torque Type Hexagon Thin Nuts（With Non-Metalic Insert）

Thread Size
D

M3

P	Pitch
d_a	max
d_a	min
d_w	min
e	min
h	max
h	min
m	min
m_w	min
s	max
s	min
per 1000 units ≈ kg

0.5
3.45
3.00
4.56
6.01
3.90
3.42
1.55
1.24
5.50
5.32
0.335
