GB /T 6171 - 2016

Unit: mm

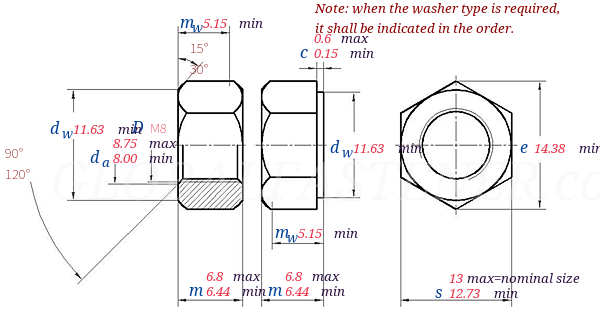

GB /T 6171 - 2016 Hexagon Nuts,Style 1-Fine Pitch Thread

Unit: mm

Find suppliers
GBT6171@simple_M8x1
Download this CAD model
GBT6171@simple-WAHER_M8x1
Download this CAD model
GBT6171_M8x1
Download this CAD model
GBT6171-WAHER_M8x1
Download this CAD model
GB /T 6171 - 2016 Hexagon Nuts,Style 1-Fine Pitch Thread
Thread Size
D 		M8
c max
min
da max
min
dw min
e min
m max
min
mw min
s max=nominal size
min
per 1000 units ≈ kg
0.6
0.15
8.75
8.00
11.63
14.38
6.8
6.44
5.15
13
12.73
4.65
