Note: No model available for the selected specifications, borrowing for presentation.B18.2.1-T7_7/8X8.75

ASME B 18.2.1 (T7) - 2012

Unit: inch

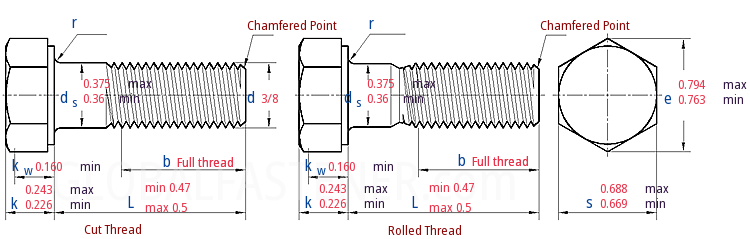

ASME B 18.2.1 T7 -  2012 Heavy Hex Screws [Table 7] (ASTM A193 / A320 / A394)

Unit: inch

ASME B 18.2.1 T7 - 2012 Heavy Hex Screws [Table 7] (ASTM A193 / A320 / A394)
Thread Size
d
3/8
ds max
min
s max
min
e max
min
k max
min
kw min
b Ref. L≤6
L>6
0.375
0.36
0.688
0.669
0.794
0.763
0.243
0.226
0.160
1
1.25
thousand-piece steel weight≈kg
18.19
Thread Lengthb
Full thread
