Self-Clinching CSOS

Unit: mm/inch

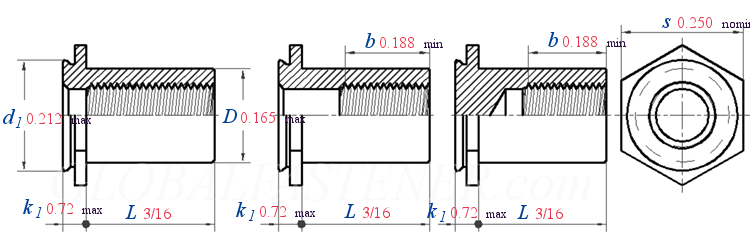

Self-Clinching CSOS Stainless Steel Concealed-Head Standoffs

Unit: mm/inch

Find suppliers
Self-Clinching CSOS Stainless Steel Concealed-Head Standoffs
For Nominal Thread Diameter 4#
P
PP
b min
k1 max
D max
d1 max
s nominal size
Sheet Thickness min
Recommend Hole Size min=nominal size
max
Min Depth of Blind Hole
Code Stainless Steel
/
40
0.188
0.72
0.165
0.212
0.250
0.93
0.213
0.216
0.075
CSOS
