DIN 261 - 2010T-Head Bolts with Hole

| 简体 | 繁體 |

(Non-preferred) dimensions in parentheses.

DIN 261 - 2010

Unit: mm

DIN 261 - 2010 T-head bolts with hole

Unit: mm

Find suppliers

Download

DIN261_M8X30

Download this CAD model

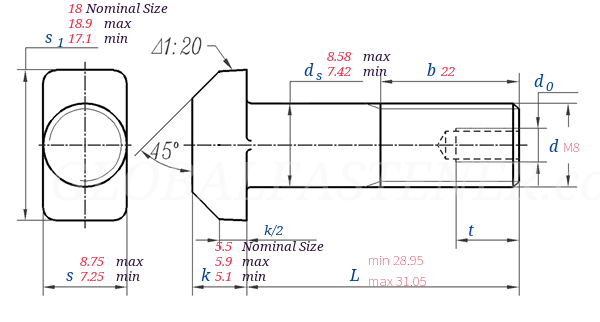

DIN 261 - 2010 T-head bolts with hole

Thread Specifications
d

M8

P	Pitch
b	L≤120
	120＜L≤200
	L＞200
d₀
d_s	max
d_s	min
k	Nominal Size
	max
	min
s	max
s	min
s₁	Nominal Size
	max
	min
t	min

1.25
22
-
-
-
8.58
7.42
5.5
5.9
5.1
8.75
7.25
18
18.9
17.1
-

thousand-piece steel weight≈kg

18.0

Thread Lengthb

22
