DIN 1470 - 1978Grooved pin, full length parallel grooved with pilot

| 简体 | 繁體 |

10
12
16
20

DIN 1470 - 1978

Unit: mm

DIN 1470 - 1978 Grooved pin, full length parallel grooved with pilot

Unit: mm

Find suppliers

Download

DIN 1470_Φ1.5X10

Download this CAD model

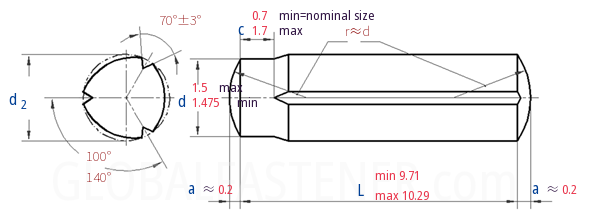

DIN 1470 - 1978 Grooved pin, full length parallel grooved with pilot

Nominal Diameter

Φ1.5

d	max
	min
c	min=nominal size
	max
a	≈
Minimum Double Shear,kN

1.5

1.475

0.7

1.7

0.2

1.6
