GB /T 9125.2 - 2020 Hexagon Nuts For Pipe Flange Connection,Type 1

Unit: mm

Find suppliers

Download

GBT9125.2[1]_M14

Download this CAD model

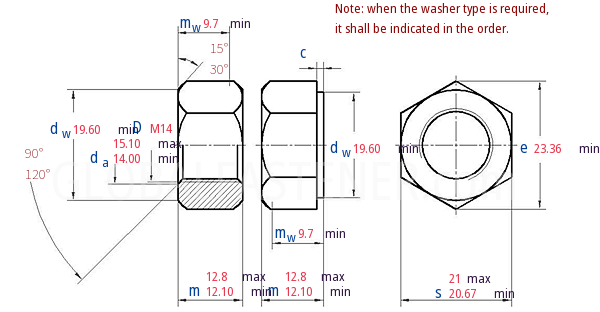

GB /T 9125.2 - 2020 Hexagon Nuts For Pipe Flange Connection,Type 1

Thread Size
d

M14

P	Pitch
d_a	max
d_a	min
d_w	min
e	min
m	max
m	min
m_w	min
s	max
s	min
per 1000 units≈kg

2
15.10
14.00
19.60
23.36
12.8
12.10
9.7
21
20.67
18.92
