  • M10
  • M12
  • M14
  • M16
  • M20
  • M24
  • M27
  • M30
  • M33
  • M36
  • M39
  • M42
  • M45
  • M48
  • M52
  • M56

61

  • 40
  • 45
  • 50
  • 55
  • 60
  • 65
GB /T 9125.1 - 2020

Unit: mm

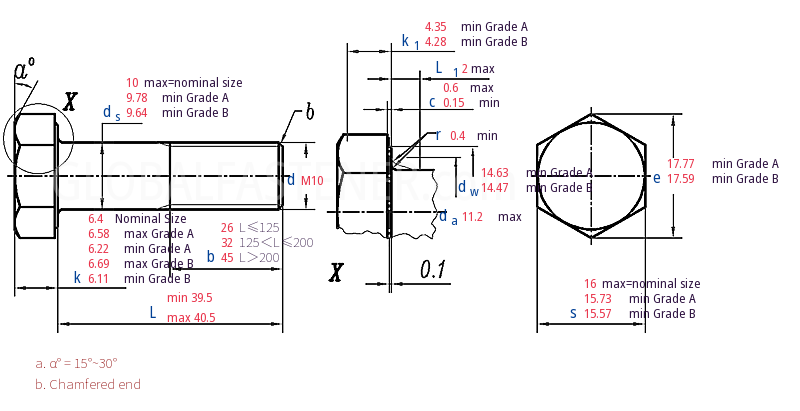

GB /T 9125.1 - 2020 Hex Bolt For Pipe Flange Connection - PN designated

Unit: mm

Find suppliers
GBT 9125.1[bolt]@simple_M10X40
Download this CAD model
GBT 9125.1[bolt]_M10X40
Download this CAD model
GB /T 9125.1 - 2020 Hex Bolt For Pipe Flange Connection - PN designated
Thread Size
d 		M10
P Pitch
b L≤125
125＜L≤200
L＞200
c max
min
da max
ds max=nominal size
Grade A min
Grade B min
dw Grade A min
Grade B min
e Grade A min
Grade B min
L1 max
k Nominal Size
Grade A max
min
Grade B max
min
k1 Grade A min
Grade B min
r min
s max=nominal size
Grade A min
Grade B min
1.5
26
32
45
0.6
0.15
11.2
10
9.78
9.64
14.63
14.47
17.77
17.59
2
6.4
6.58
6.22
6.69
6.11
4.35
4.28
0.4
16
15.73
15.57
