ASME B 18.2.3.9M - 2001 (R2014)Metric Heavy Hex Head Flange Screws (SAE J1199 / ASTM F568M, F738M, F468M, 8.8, 9.8, 10.9)

| 简体 | 繁體 |

ASME B 18.2.3.9M - 2001 (R2014)

Unit: mm

ASME B 18.2.3.9M - 2001 R2014 Metric Heavy Hex Head Flange Screws (SAE J1199 / ASTM F568M, F738M, F468M, 8.8, 9.8, 10.9)

Unit: mm

Find suppliers

Download

B18.2.3.9M-S_M5X8

Download this CAD model

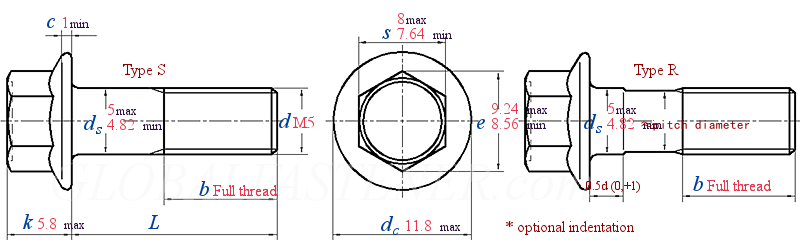

ASME B 18.2.3.9M - 2001 R2014 Metric Heavy Hex Head Flange Screws (SAE J1199 / ASTM F568M, F738M, F468M, 8.8, 9.8, 10.9)

Thread Size
d

M5

P	Pitch
d_s	max
d_s	min
s	max
s	min
e	max
e	min
d_c	max
c	min
k	max
b	L≤125
	125＜L≤200
	L＞200

0.8
5
4.82
8
7.64
9.24
8.56
11.8
1
5.8
16
22
35

Thread Lengthb

Full thread
