DIN 439 (-2) - 1987Chamfered Hexagon Thin Nuts - Product Grades A and B

| 简体 | 繁體 |

(Non-preferred) dimensions in parentheses.

DIN 439 (-2) - 1987

Unit: mm

DIN 439 -2 - 1987 Chamfered Hexagon Thin Nuts—Product Grades A and B

Unit: mm

Find suppliers

Download

DIN 439-2 P0.35_M1.6

Download this CAD model

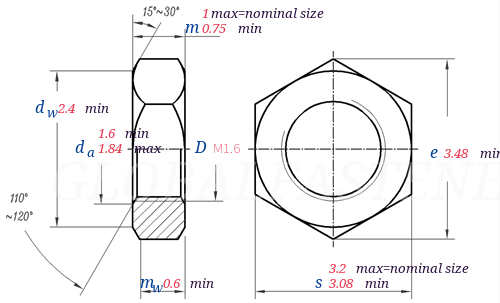

DIN 439 -2 - 1987 Chamfered Hexagon Thin Nuts—Product Grades A and B

Thread Size
D

M1.6

P		pitch	Coarse thread
			Fine thread 1
			Fine thread 2
			Fine thread 3
d_a		min
		max
d_w		min
e		min
m		max=nominal size
		min
m_w		min
s		max=nominal size
		min
per 1000 units ≈ kg

0.35
/
/
/
1.6
1.84
2.4
3.48
1
0.75
0.6
3.2
3.08
0.06
