DIN 1471 - 1978Grooved Pins, Full Length Taper Grooved

| 简体 | 繁體 |

DIN 1471 - 1978

Unit: mm

DIN 1471 - 1978 Grooved pins, Full Length Taper Grooved

Unit: mm

Find suppliers

Download

DIN 1471_Φ1.5X4

Download this CAD model

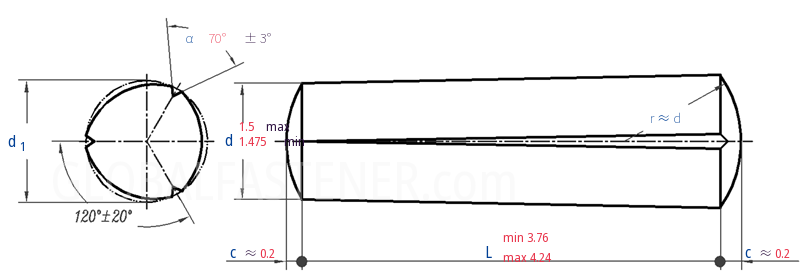

DIN 1471 - 1978 Grooved pins, Full Length Taper Grooved

Nominal Diameter
d

Φ1.5

d	max
d	min
c	≈
α ^①	± 3°
Minimum Double Shear,kN

1.5

1.475

0.2

70°

1.60
