DIN 2510-3 (L) - 1971Connections with Waisted Stud - Type L

| 简体 | 繁體 |

DIN 2510-3 (L) - 1971

Unit: mm

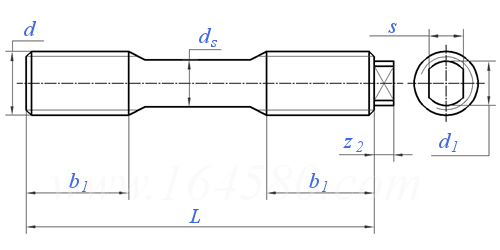

DIN 2510-3 L - 1971 Connections with Waisted Stud - Type L

Unit: mm

Find suppliers

Download

DIN2510-3L@simple_M12X80

Download this CAD model

DIN2510-3L_M12X80

Download this CAD model

DIN 2510-3 L - 1971 Connections with Waisted Stud - Type L

Thread Size
d

M12

P	Pitch
d_s
d₁
b₁
s
z₂
Centre hole

1.75

8.5

8

20

7

4

A1.6
