ASME B 18.3 (T1) - 2012

Unit: inch

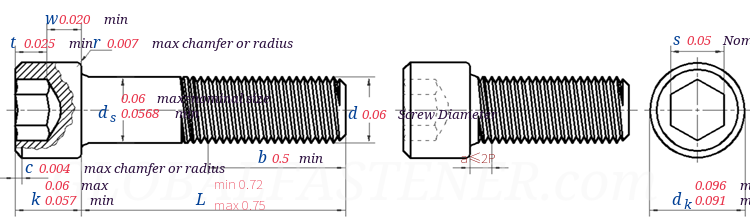

ASME B 18.3 - 2012 Hexagon Socket Head Cap Screws [Table 1] (ASTM A574 / F837)

Unit: inch

Find suppliers
B18.3-T1-PP80_0#X0.75
Download this CAD model
B18.3-T1-simple-PP80_0#X0.75
Download this CAD model
ASME B 18.3 - 2012 Hexagon Socket Head Cap Screws [Table 1] (ASTM A574 / F837)
Size 0#
d Screw Diameter
PP UNC
UNF
UNEF
ds max=nominal size
min
dk ① max
min
k max
min
s Nominal Size
t min
b min
c chamfer or radius max
r chamfer or radius max
w min
0.06
-
80
-
0.06
0.0568
0.096
0.091
0.06
0.057
0.05
0.025
0.5
0.004
0.007
0.020
