EN 14399-4 (Bolt) - 2005

Unit: mm

EN 14399-4 Bolt - 2005 High-strength Structural Bolting Assemblies for Preloading - Part 4: System HV - Hexagon bolts

Unit: mm

Find suppliers
EN14399-4@simple_M12X35
Download this CAD model
EN14399-4_M12X35
Download this CAD model

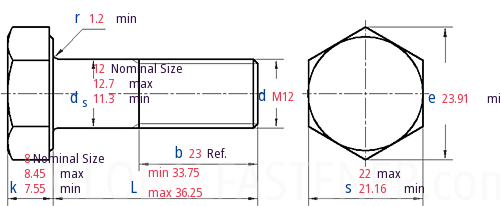

EN 14399-4 Bolt - 2005 High-strength Structural Bolting Assemblies for Preloading - Part 4: System HV - Hexagon bolts
Thread Specifications
d 		M12
P Pitch
b Ref.
ds Nominal Size
max
min
e min
k Nominal Size
max
min
s max
min
r min
1.75
23
12
12.7
11.3
23.91
8
8.45
7.55
22
21.16
1.2
