GB /T 79 - 2007 Hexagon Socket Set Screws With Dog Point

Unit: mm

Find suppliers

Download

GBT 79_M1.6X2

Download this CAD model

GB 79@simple_M1.6X2

Download this CAD model

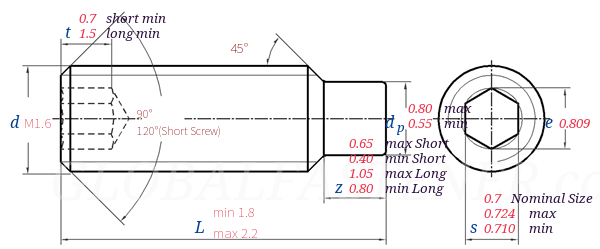

GB /T 79 - 2007 Hexagon Socket Set Screws With Dog Point

Thread Specifications
d

M1.6

P		Pitch
d_p		max
		min
s		Nominal Size
		max
		min
z		Short	max
			min
		Long	max
			min
t		min	short
			long
e		min
L₀ ^①		Nominal Size

0.35
0.80
0.55
0.7
0.724
0.710
0.65
0.40
1.05
0.80
0.7
1.5
0.809
2.5

thousand-piece steel weight≈kg

0.024
