DIN 508 - 2002

Unit: mm

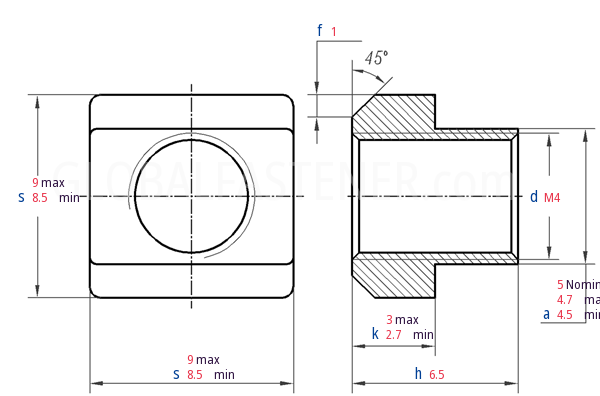

DIN 508 - 2002 Nuts For T-slots

Unit: mm

Find suppliers

Download

DIN508@simple_M4

Download this CAD model

DIN508_M4

Download this CAD model

DIN 508 - 2002 Nuts For T-slots

Thread Specifications
d

M4

P	Pitch
a	Nominal Size
	max
	min
s	max
	min
f
h
k	max
	min
for T-slots according to DIN 650
per 1000 units≈kg	≈

0.7
5
4.7
4.5
9
8.5
1
6.5
3
2.7
5
2.5
