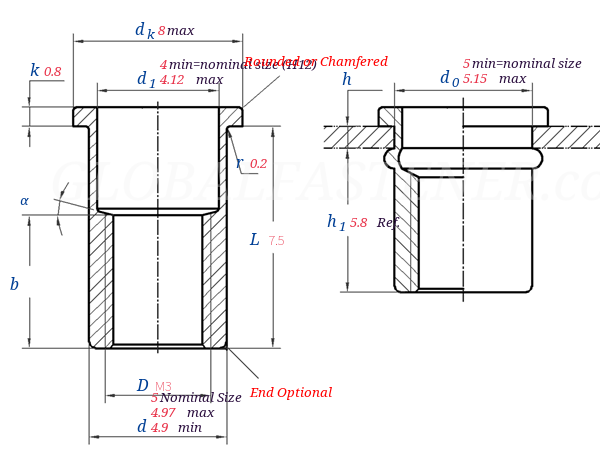

GB /T 17880.1 - 1999Flat Head Riveted Nuts

| 简体 | 繁體 |

Same specifications, different dimensions for other parts.

7.5
8.5
9.5
10.5

GB /T 17880.1 - 1999

Unit: mm

GB /T 17880.1 - 1999 Flat Head Riveted Nuts

Unit: mm

Find suppliers

Download

GB17880.1@assembled@simple_M3X7.5

Download this CAD model

GB17880.1@simple_M3X7.5

Download this CAD model

GB17880.1_M3X7.5

Download this CAD model

GB17880.1@assembled_M3X7.5

Download this CAD model

GB /T 17880.1 - 1999 Flat Head Riveted Nuts

Thread Size
D

M3

P	Coarse thread
d	Nominal Size
	max
	min
d₁	min=nominal size (H12)
d₁	max
d_k	max
k
r
d₀	min=nominal size
d₀	max
h₁	Ref.

0.5
5
4.97
4.9
4
4.12
8
0.8
0.2
5
5.15
5.8
