GB /T 12618.4 - 2006Open End Blind Rivets with Break Pull Mandrel and Protruding Head - Property Class 51

| 简体 | 繁體 |

GB /T 12618.4 - 2006

Unit: mm

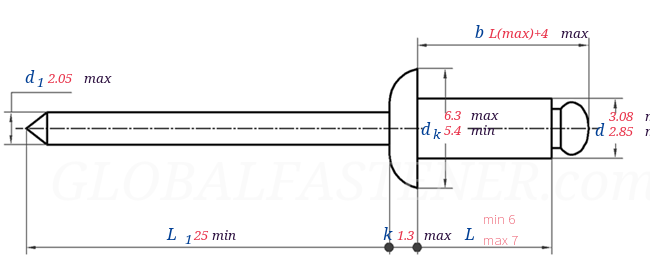

GB /T 12618.4 - 2006 Open End Blind Rivets With Break Pull Mandrel And Protruding Head―Property Class 51

Unit: mm

Find suppliers

Download

GBT12618.4_Φ3X6

Download this CAD model

GBT 12618.4@assembled-厚2_Φ3X6

Download this CAD model

GB /T 12618.4 - 2006 Open End Blind Rivets With Break Pull Mandrel And Protruding Head―Property Class 51

Nominal Diameter
d

Φ3

d	max
	min
d_k	max
	min
k	max
d₁	max
L₁	min
b	max
Shear load/N(min)
Tensile load/N(min)
Mandrel break load/N(max)
Head retention test load,N

3.08
2.85
6.3
5.4
1.3
2.05
25
L(max)+4
1800
2200
4100
35
