GB /T 955 - 1987Wave Spring Washers

| 简体 | 繁體 |

(Non-preferred) dimensions in parentheses.

GB /T 955 - 1987

Unit: mm

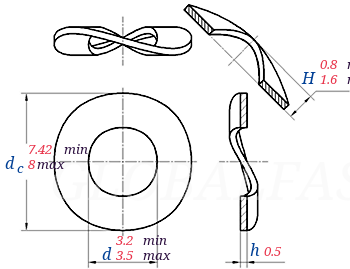

GB /T 955 - 1987 Wave Spring Washers

Unit: mm

Find suppliers

Download

GBT955_3

Download this CAD model

GB /T 955 - 1987 Wave Spring Washers

Size

3

d	min
	max
d_c	min
	max
H	min
	max
h
per 1000 units ≈ kg

3.2
3.5
7.42
8
0.8
1.6
0.5
0.14
