DIN 7973 - 1990Slotted Raised Countersunk Head Tapping Screws

| 简体 | 繁體 |

(Non-preferred) dimensions in parentheses.

DIN 7973 - 1990

Unit: mm

DIN 7973 - 1990 Slotted Raised Countersunk Head Tapping Screws

Unit: mm

Find suppliers

Download

DIN7973_ST2.2X6.5

Download this CAD model

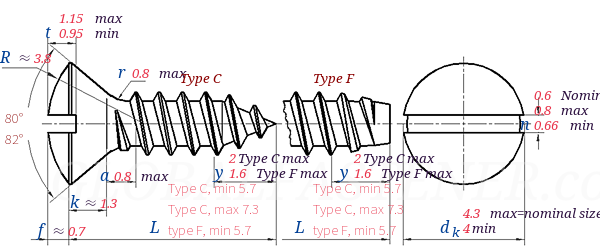

DIN 7973 - 1990 Slotted Raised Countersunk Head Tapping Screws

Thread Size

ST2.2

P		Pitch
a		max
d_k		max=nominal size
		min
f		≈
k		≈
n		Nominal Size
		max
		min
r		max
R		≈
t		max
		min
y		max	Type C
			Type F

0.8
0.8
4.3
4
0.7
1.3
0.6
0.8
0.66
0.8
3.8
1.15
0.95
2
1.6

thousand-piece steel weight≈kg

0.18
