  • 2.5
  • 3.2
  • 4
  • 5
  • 6.3
  • 7
  • 8
DIN 11024 - 1973

Unit: mm

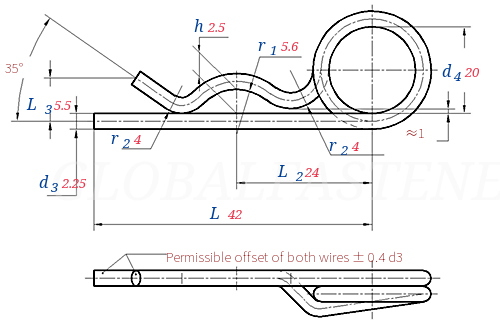

DIN 11024 - 1973 Spring Cotters

Unit: mm

Find suppliers
DIN 11024 - 1973 Spring Cotters
Size 2.5
d Hole diameter min
max
d2 outer diameter
d3
d4
L
L2
L3
h
r1
r2
per 100 units ≈ kg
2.5
2.64
9~11.2
2.25
20
42
24
5.5
2.5
5.6
4
0.59
