Through-hole, Threaded Self-Clinching Sthandoffs

Self-Clinching SO SOS SOA SO4

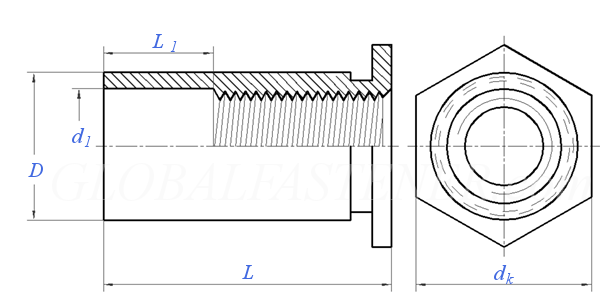

Display drawing:

压铆件Self-Clinching SO SOS SOA SO4 Self-Cl Through-hole, Threaded Self-Clinching Sthandoffs
Nominal Length L Tips:seclect Nominal Length L and get .
For Nominal Thread Diameter
4# 4# 6# 6# 8# 10# M3 M3 M3.5 M4 M5
P
PP
d1 nominal size
max
min
D max=nominal size
min
dk nominal size
Sheet Thickness min
Recommend Hole Size min=nominal size
max
Code Thread Code
steel
stainless steel
Aluminum
hardened stainless steel
/ / / / / / 0.5 0.5 0.6 0.7 0.8
40 40 32 32 32 32 / / / / /
0.125 0.125 0.156 0.156 0.188 0.203 3.2 3.2 3.9 4.8 5.35
0.130 0.130 0.161 0.161 0.193 0.208 3.33 3.33 4.03 4.93 5.48
0.120 0.120 0.151 0.151 0.183 0.198 3.07 3.07 3.77 4.67 5.22
0.165 0.212 0.212 0.280 0.280 0.280 4.2 5.39 5.39 7.12 7.12
0.160 0.207 0.207 0.275 0.275 0.275 4.07 5.26 5.26 6.99 6.99
0.187 0.250 0.250 0.312 0.312 0.312 4.8 6.4 6.4 7.9 7.9
0.04 0.04 0.04 0.05 0.05 0.05 1 1 1 1.27 1.27
0.166 0.213 0.213 0.281 0.281 0.281 4.22 5.41 5.41 7.14 7.14
0.169 0.216 0.216 0.284 0.284 0.284 4.3 5.49 5.49 7.22 7.22
440 6440 632 8632 832 032 M3 3.5M3 M3.5 M4 M5
SO SO SO SO SO SO SO SO SO SO SO
SOS SOS SOS SOS SOS SOS SOS SOS SOS SOS SOS
SOA SOA SOA SOA SOA SOA SOA SOA SOA SOA SOA
SO4 SO4 SO4 SO4 SO4 SO4 SO4 SO4 SO4 SO4 SO4
L1
- - - - - - - - - - -
