Click Specification

Unit:mm

Countersunk Square Bolts with Long Square

CNS 4418 - 1981

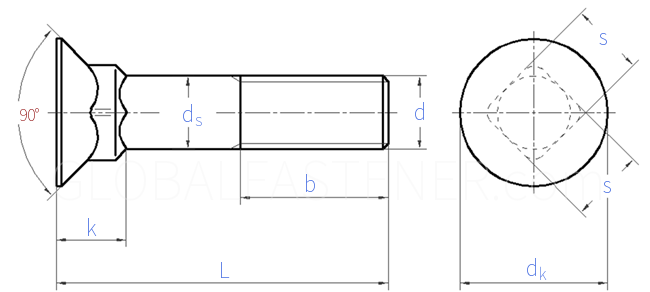

Display drawing:

台湾CNS 4418 - 1981 CNS4418 4418CNS Countersunk Square Bolts with Long Square
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight Thread length.
Thread Size
d
M5 M6 M8 M10 M12 M16 M20
b L＜120
120＜L＜160
k
dk
s
16 18 22 26 30 38 46
22 24 28 32 36 44 52
6 7 9 11 14 17 22
13 16 20 24 28 38 44
5 6 8 10 12 16 20
Weight of per 1000 steel products(≈kg)
- - - - - - -
Length of Thread b
- - - - - - -
