Connectors

Self-Clinching DSO DSOS

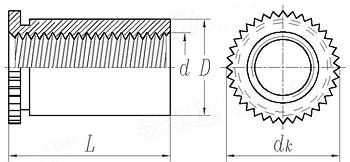

Display drawing:

压铆件Self-Clinching DSO DSOS Self-Clinchin Connectors
For Nominal Thread Diameter
4# 4# M3 M3
P
PP
D max
dk Nominal Size
L Nominal Size
max
min
Sheet Thickness min
Recommend Hole Size min=nominal size
max
Code stainless steel
steel
- - 0.5 0.5
40 40 - -
0.165 0.165 4.2 4.2
0.194 0.1974 4.92 4.92
0.250 0.275 6.35 7
0.252 0.277 6.4 7.05
0.245 0.270 6.22 6.87
0.037~0.250 0.037~0.250 0.94~6.35 0.94~6.35
0.166 0.166 4.22 4.22
0.169 0.169 4.3 4.3
DSOS DSOS DSOS DSOS
DSO DSO DSO DSO
